Gravideck GT35
Uncompromising
Physics Accuracy





demo-attachment-194-rounded-Rectangle-1-right-features-section
demo-attachment-196-rounded-Rectangle-2-right-features-section
demo-attachment-174-features-bg
Ensemble2

La plateforme ultime du Gamer

Donnez du mouvement à votre simulation favorite

Type d'affichage au choix

Your Gravideck motion system can be configured to embark a widescreen monitor, or simply your favourite VR headset.

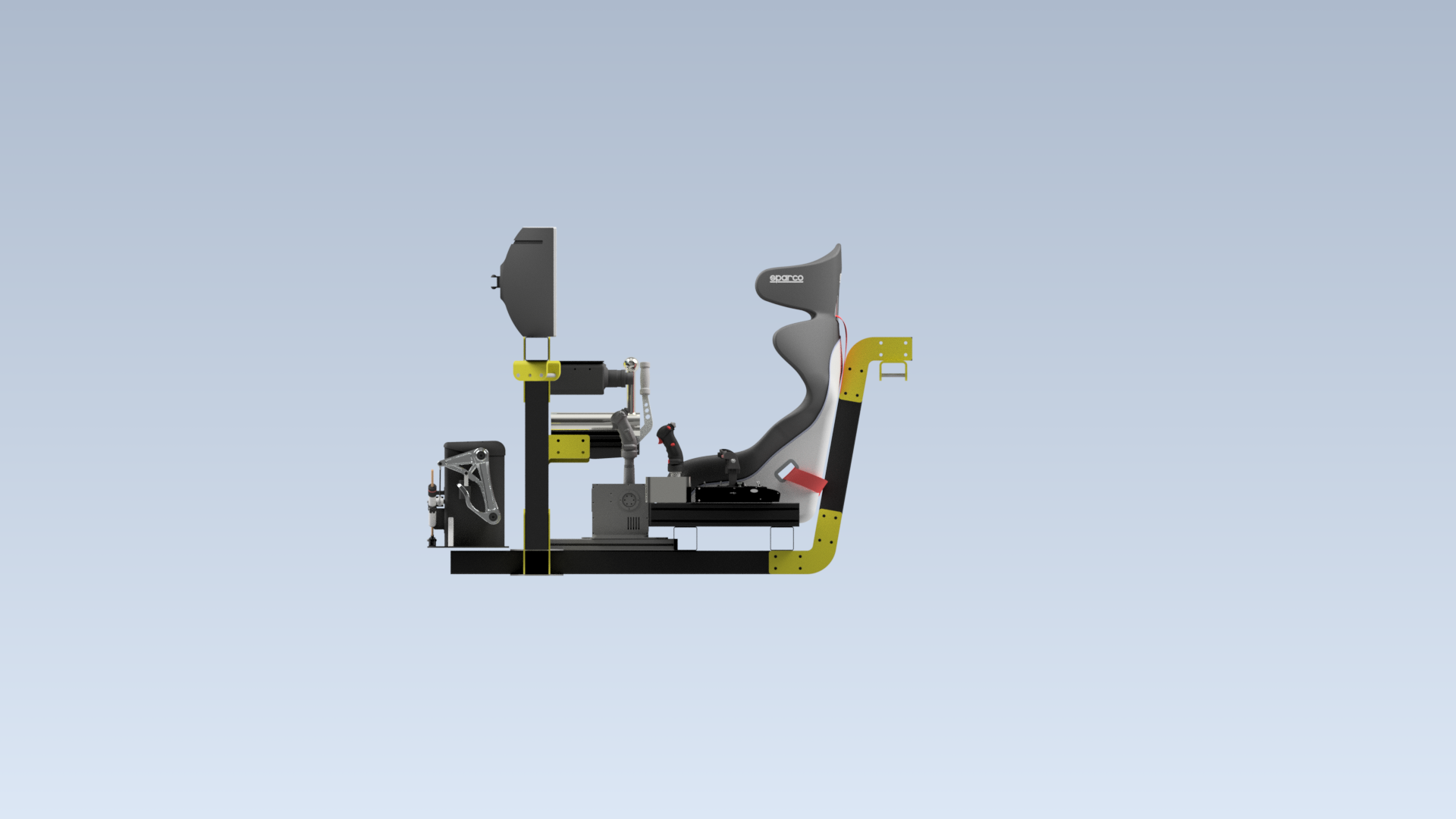

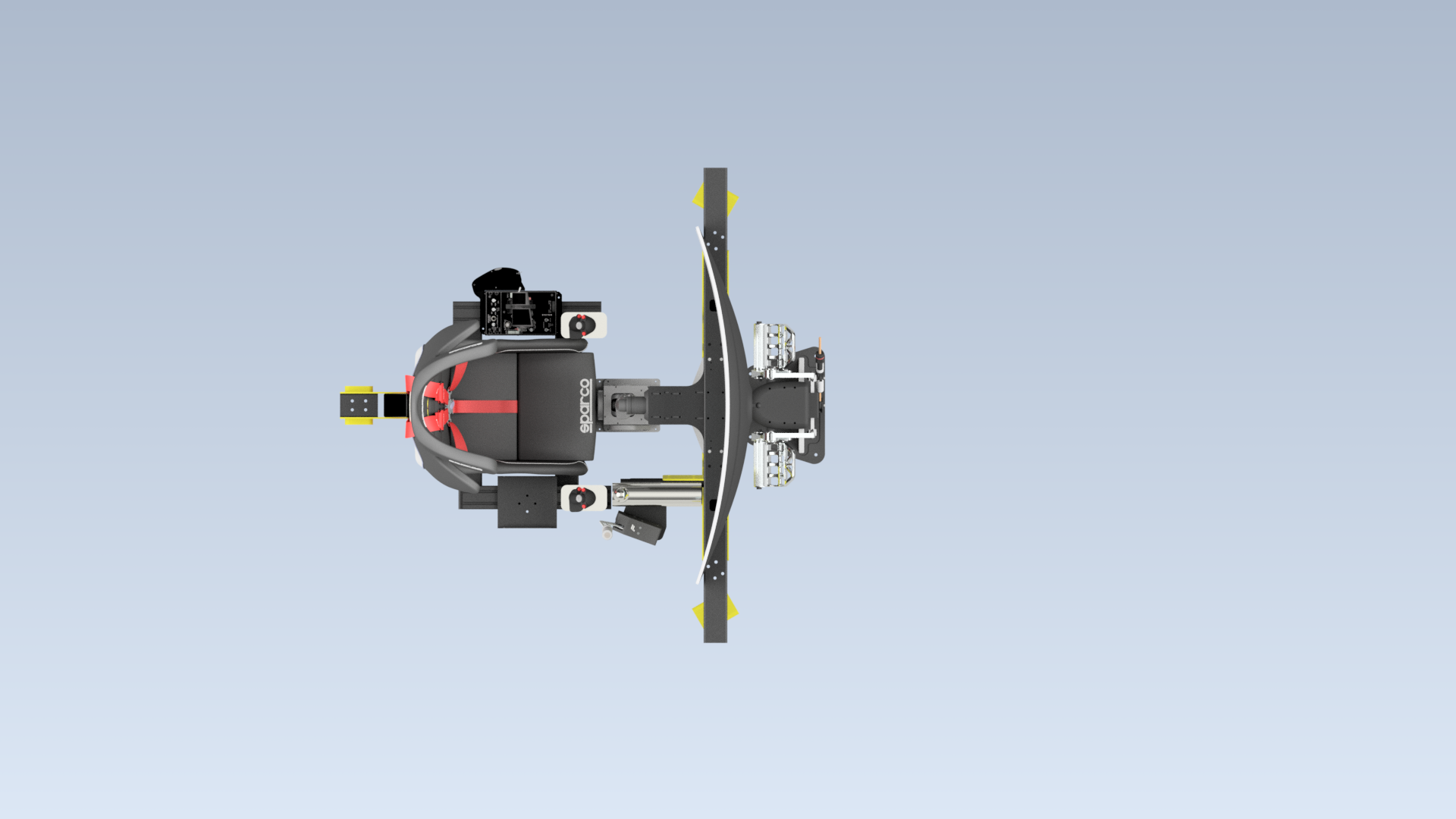

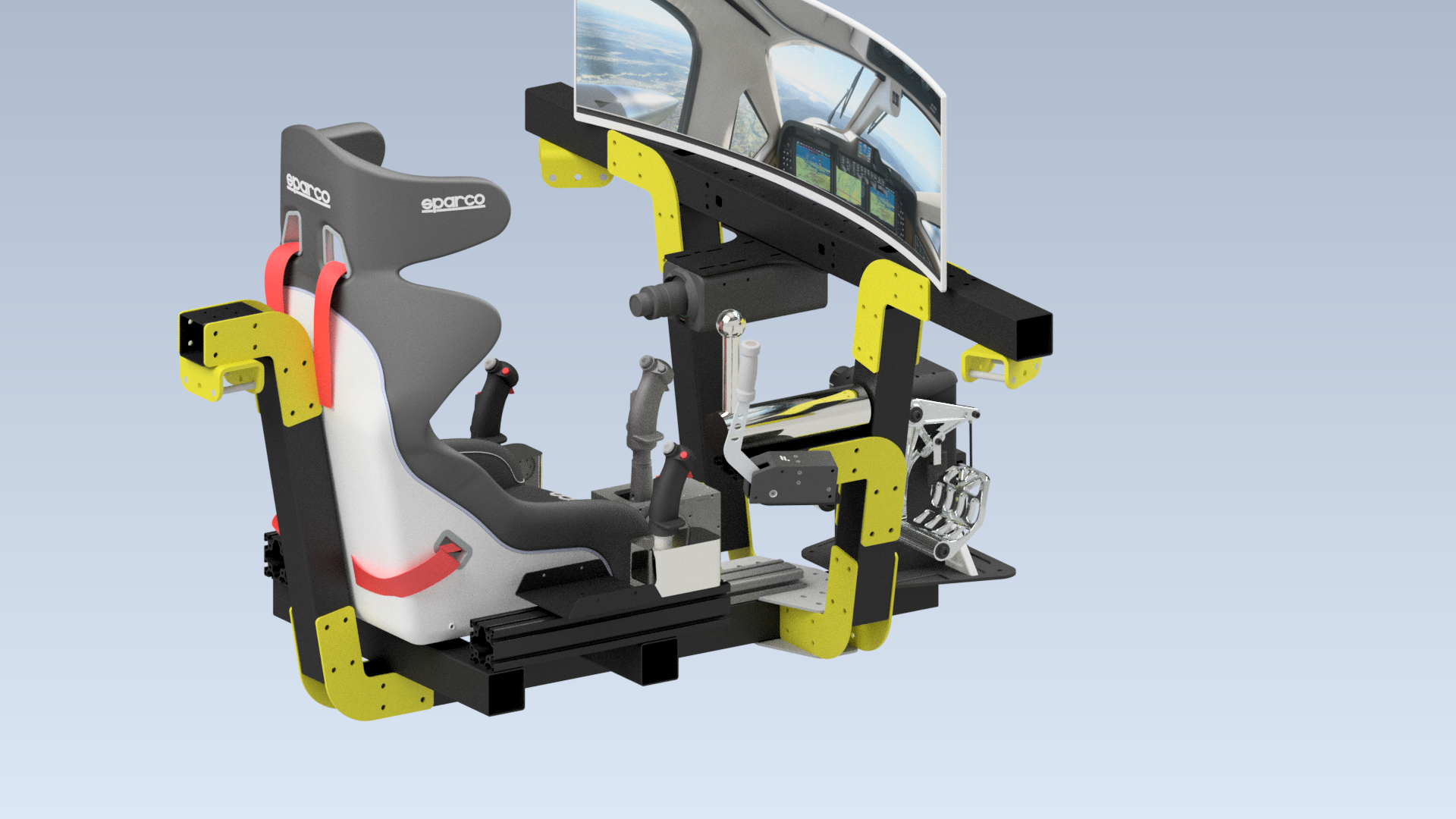

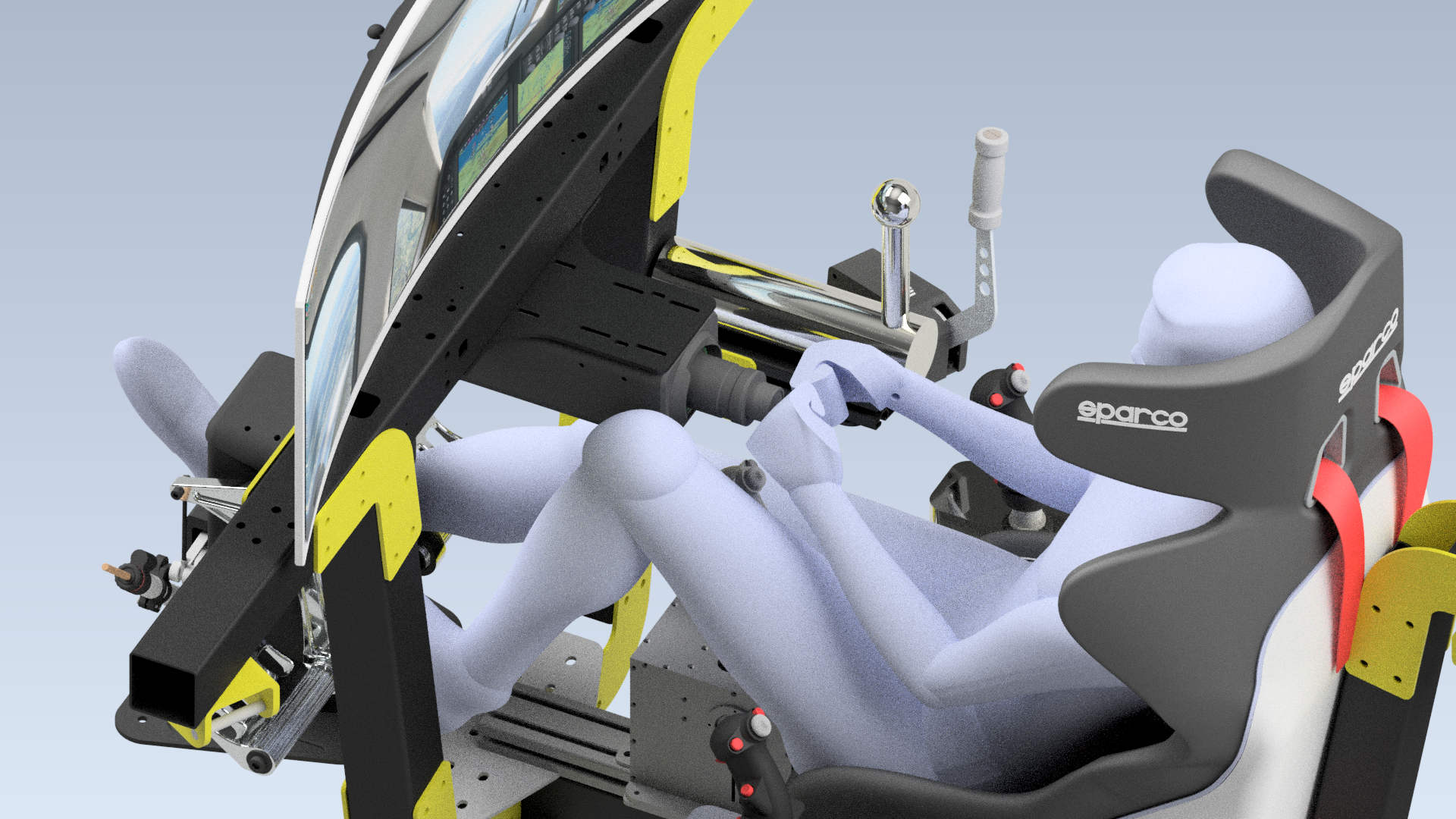

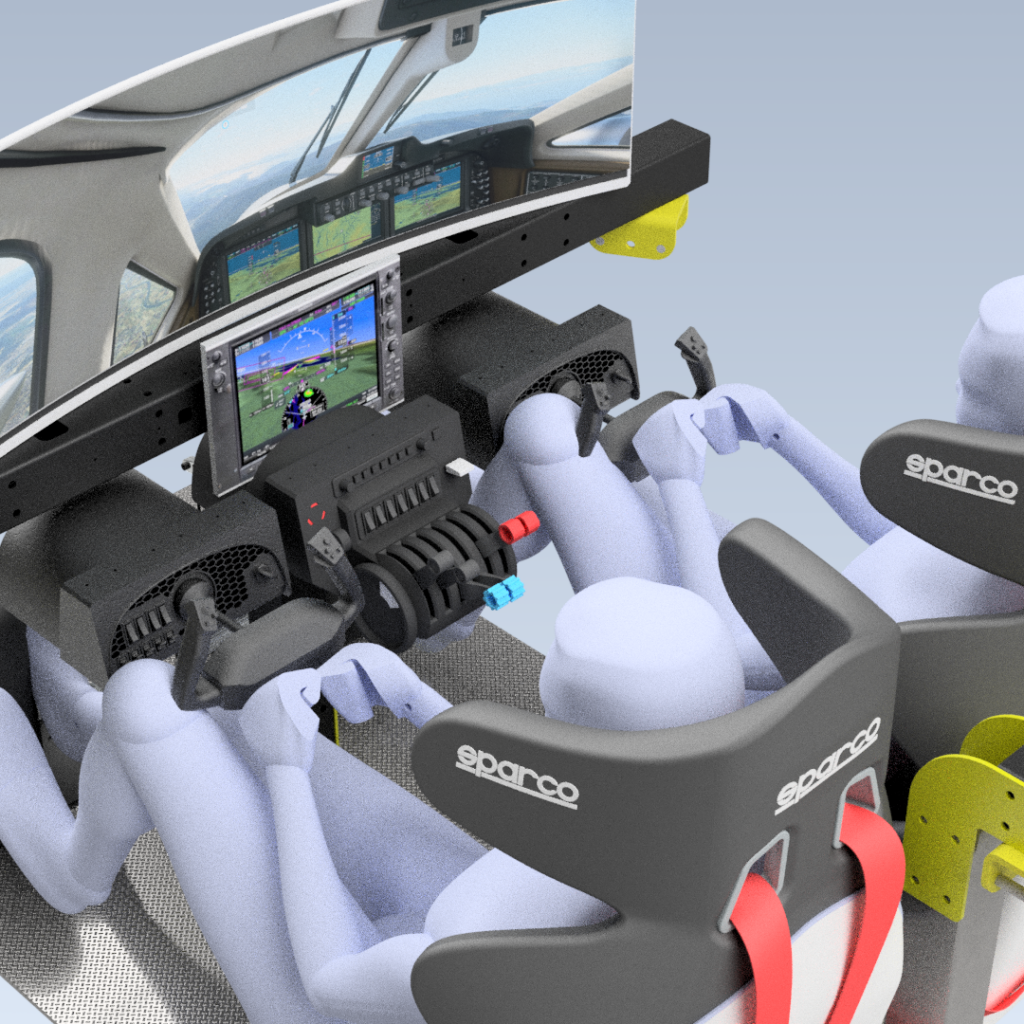

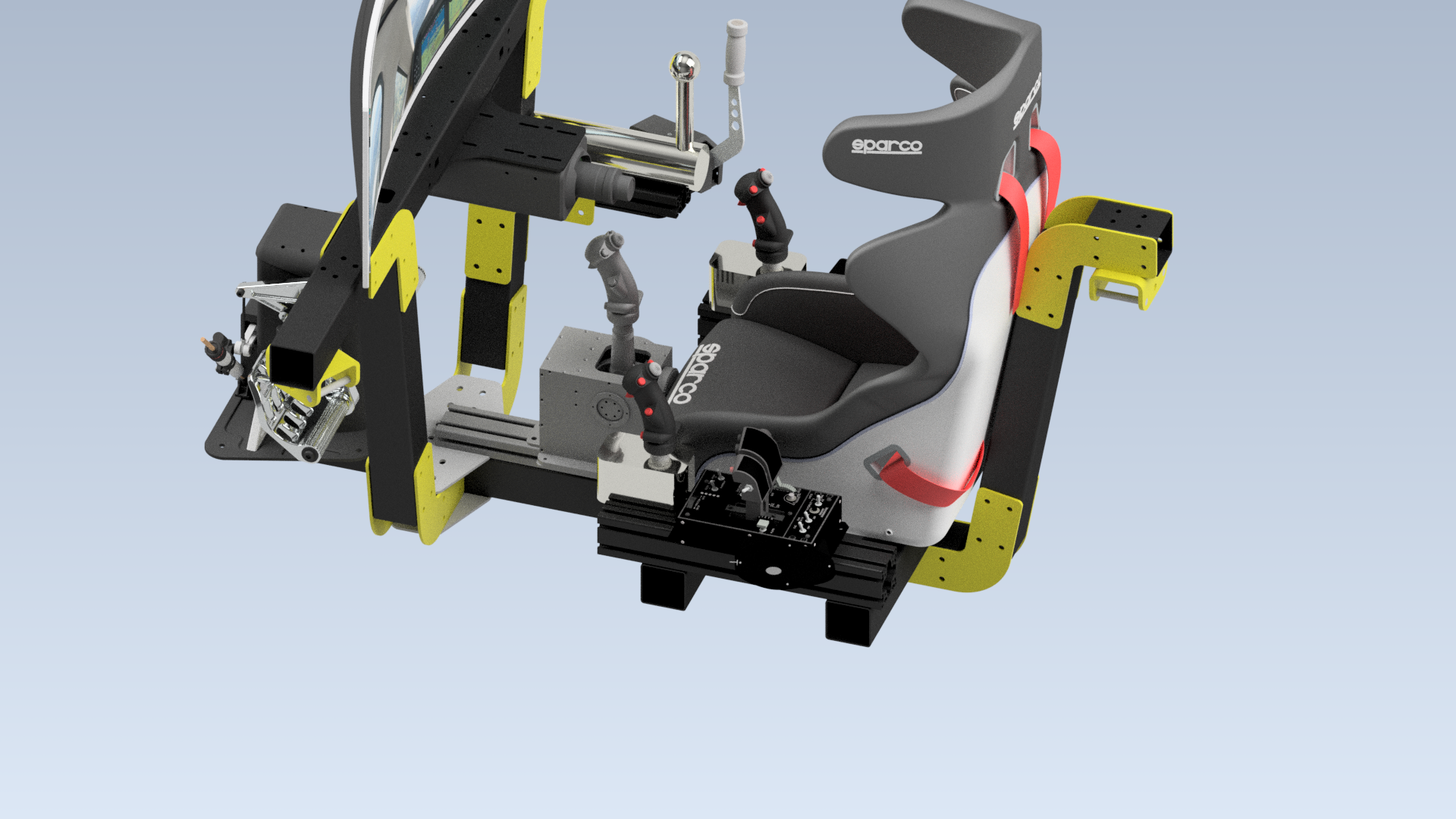

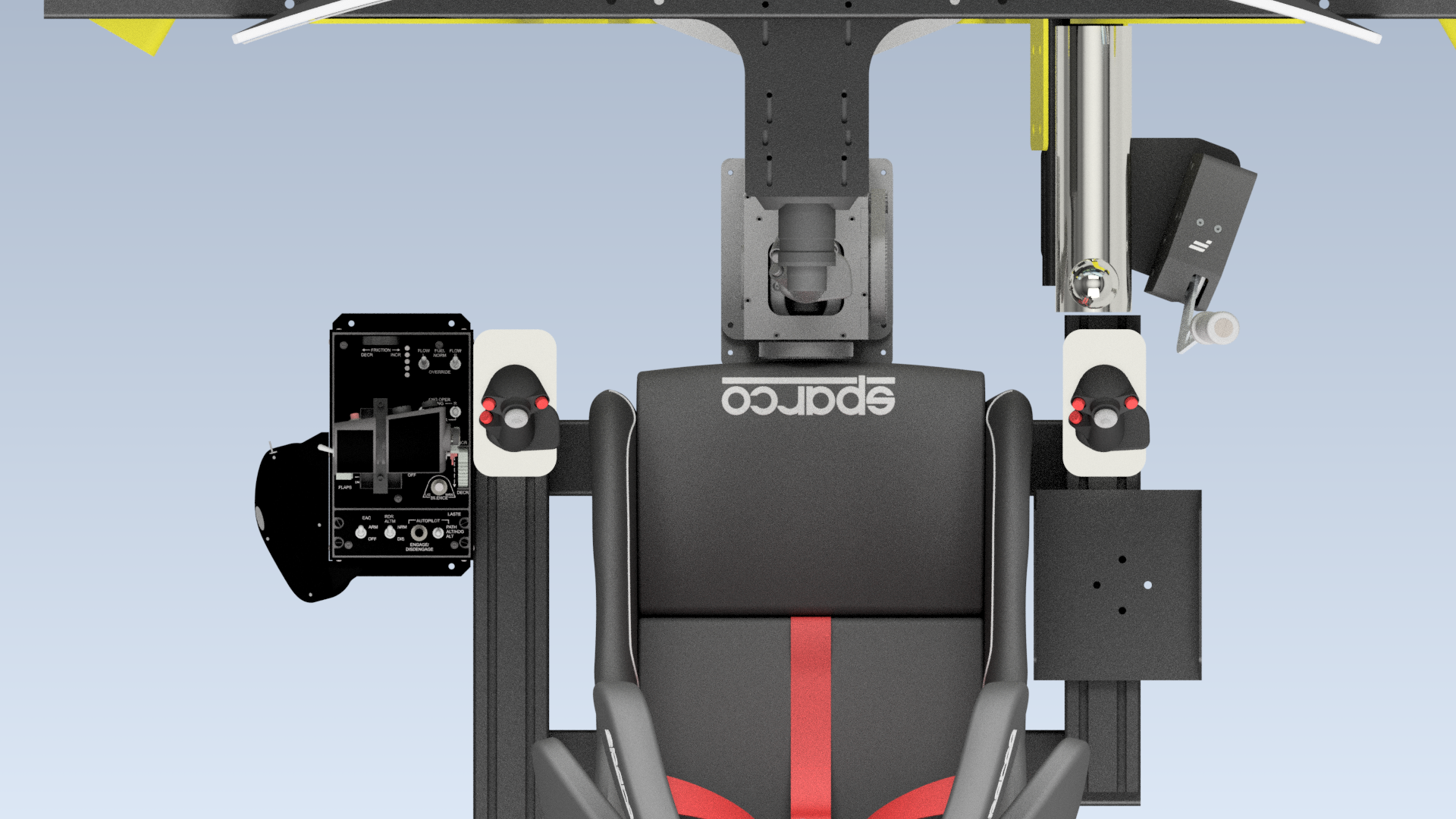

Un cockpit intégral

Embark your favorite force feedback wheelbase, pedals, flight sticks, wind systems, belt tensioner... The G35 is thought to be evolutive and upgradeable

High Fidelity Motion

Gravideck™ True Motion technology lets you experience motion like never before. The motions are vivid, crisp, powerful and above all, physically accurate.

Caractéristiques

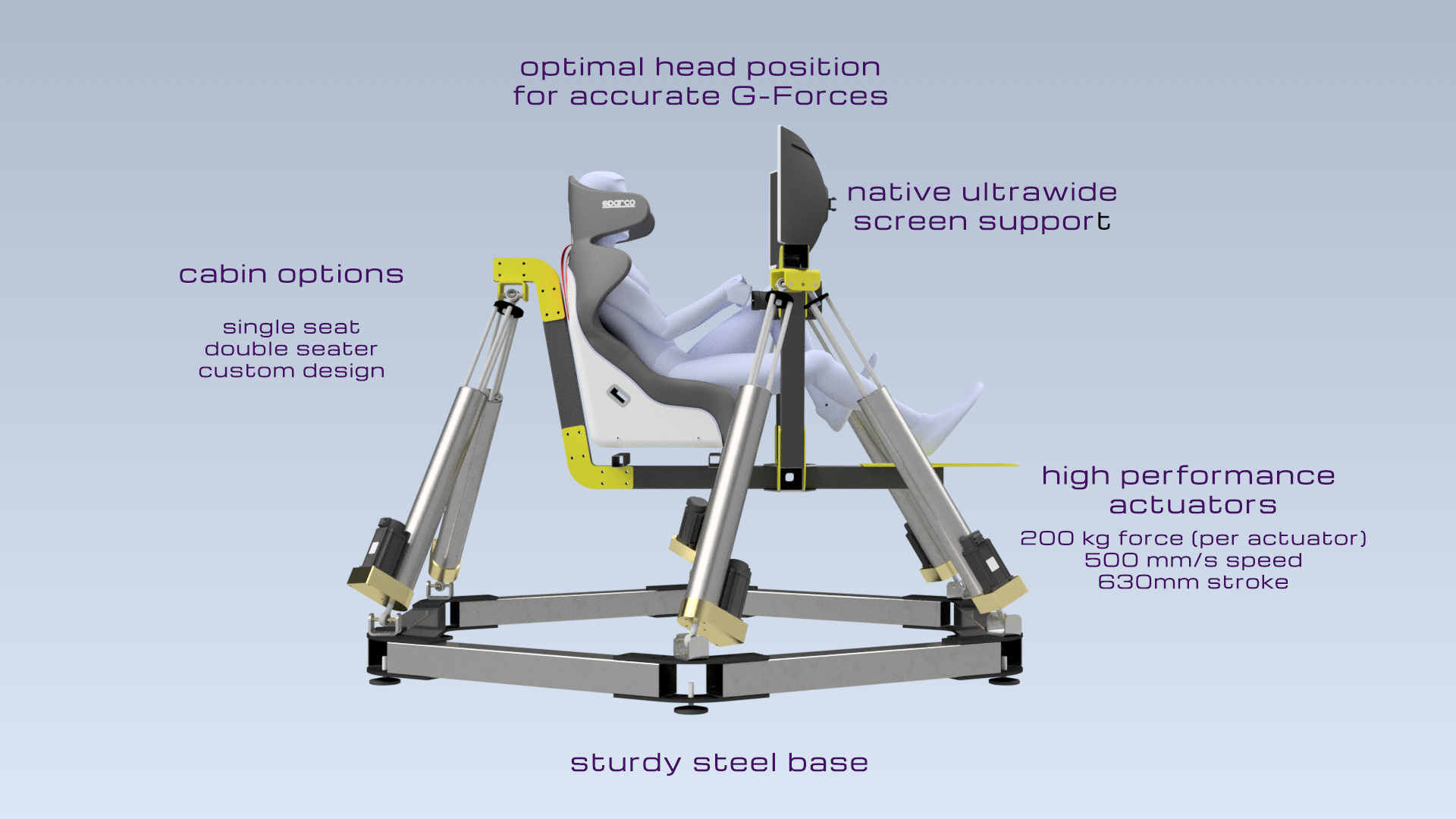

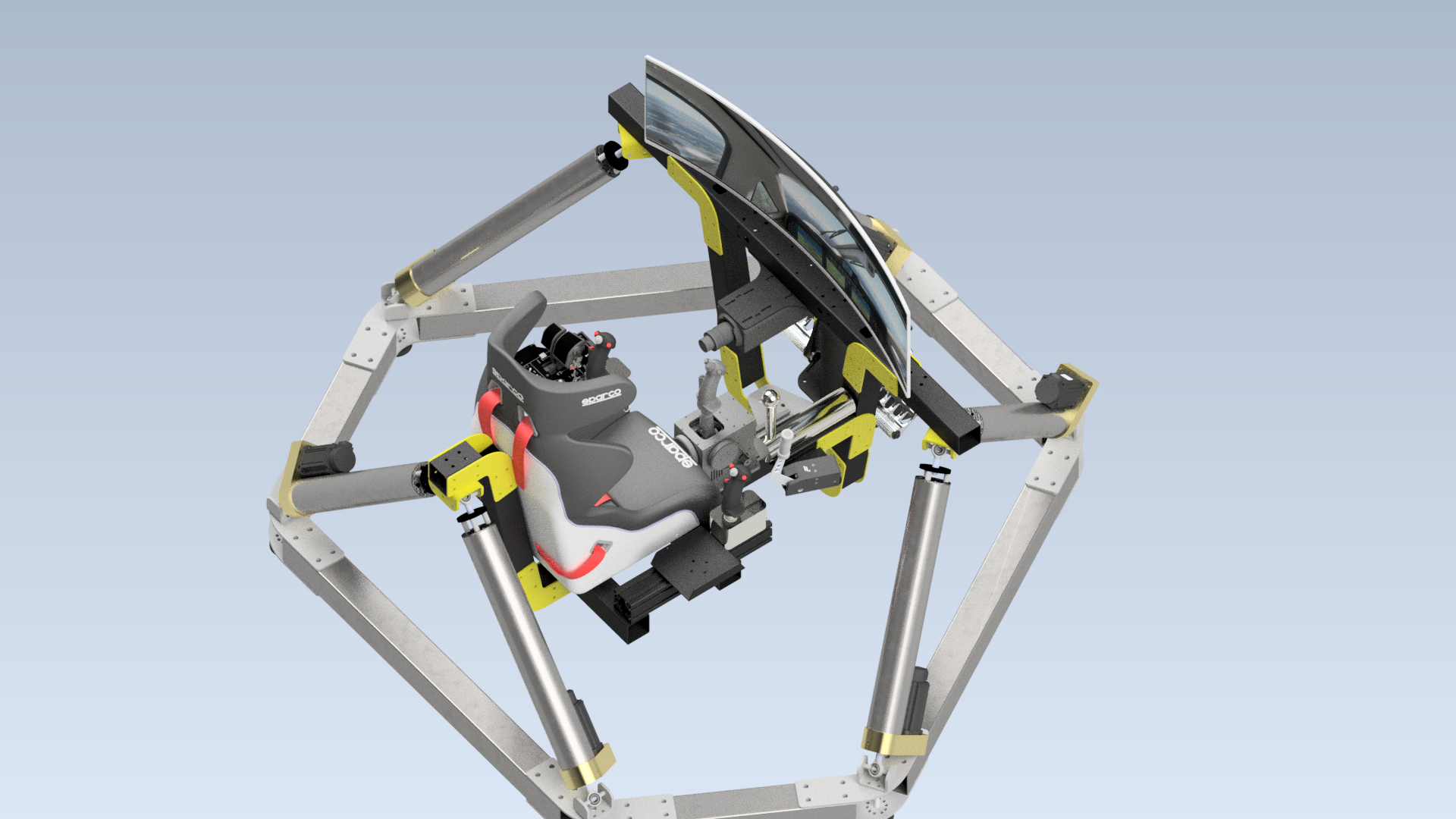

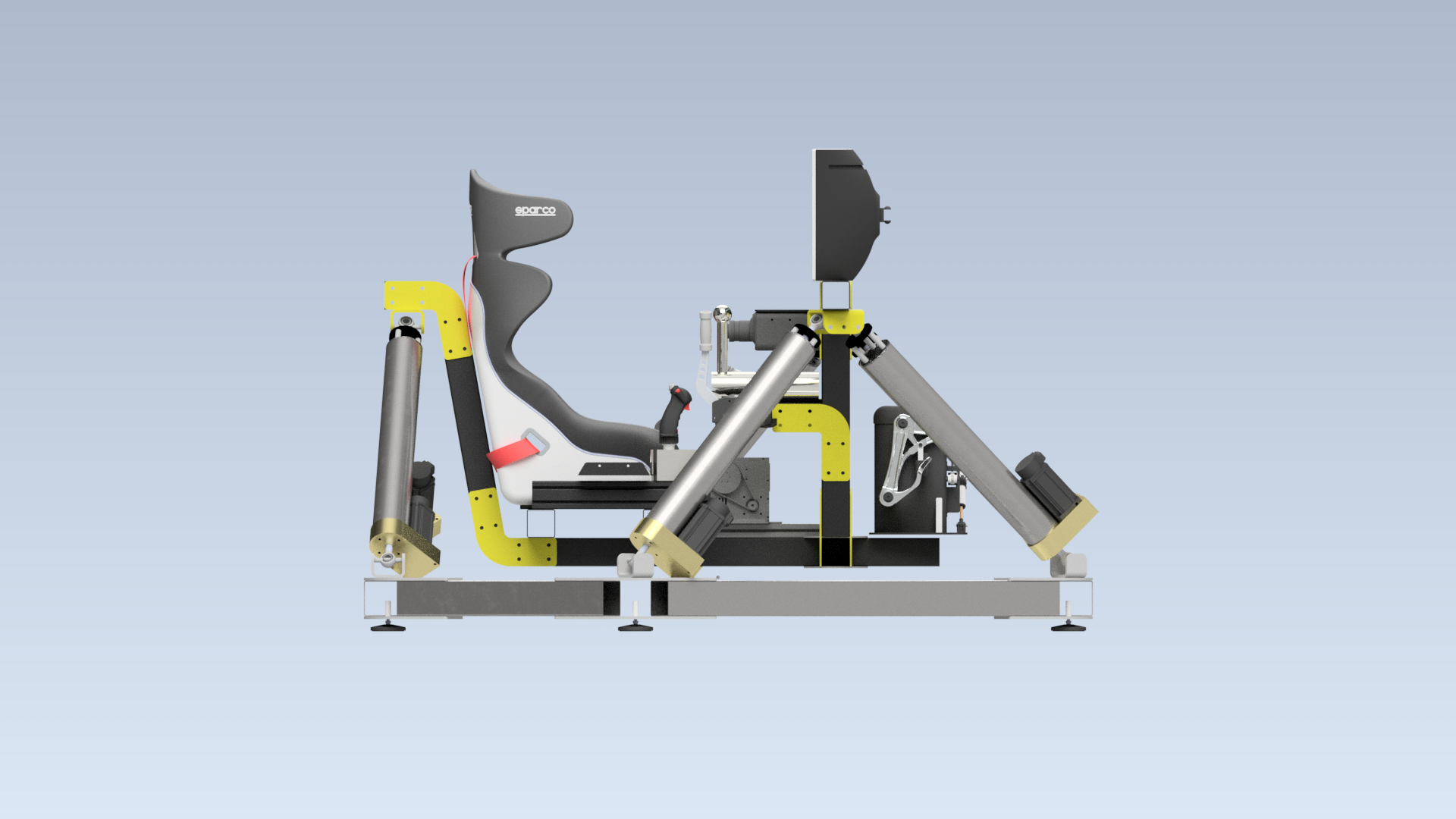

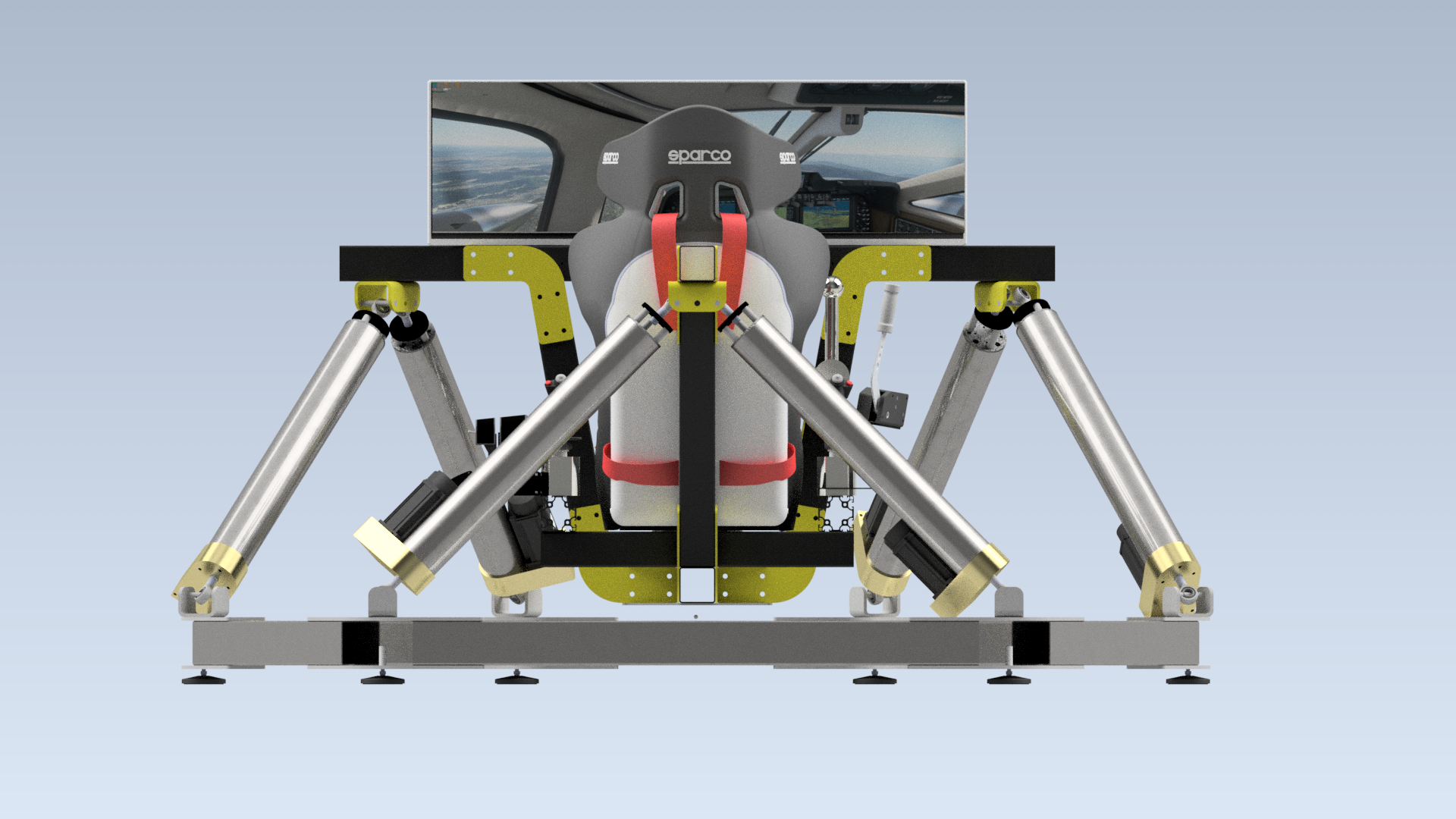

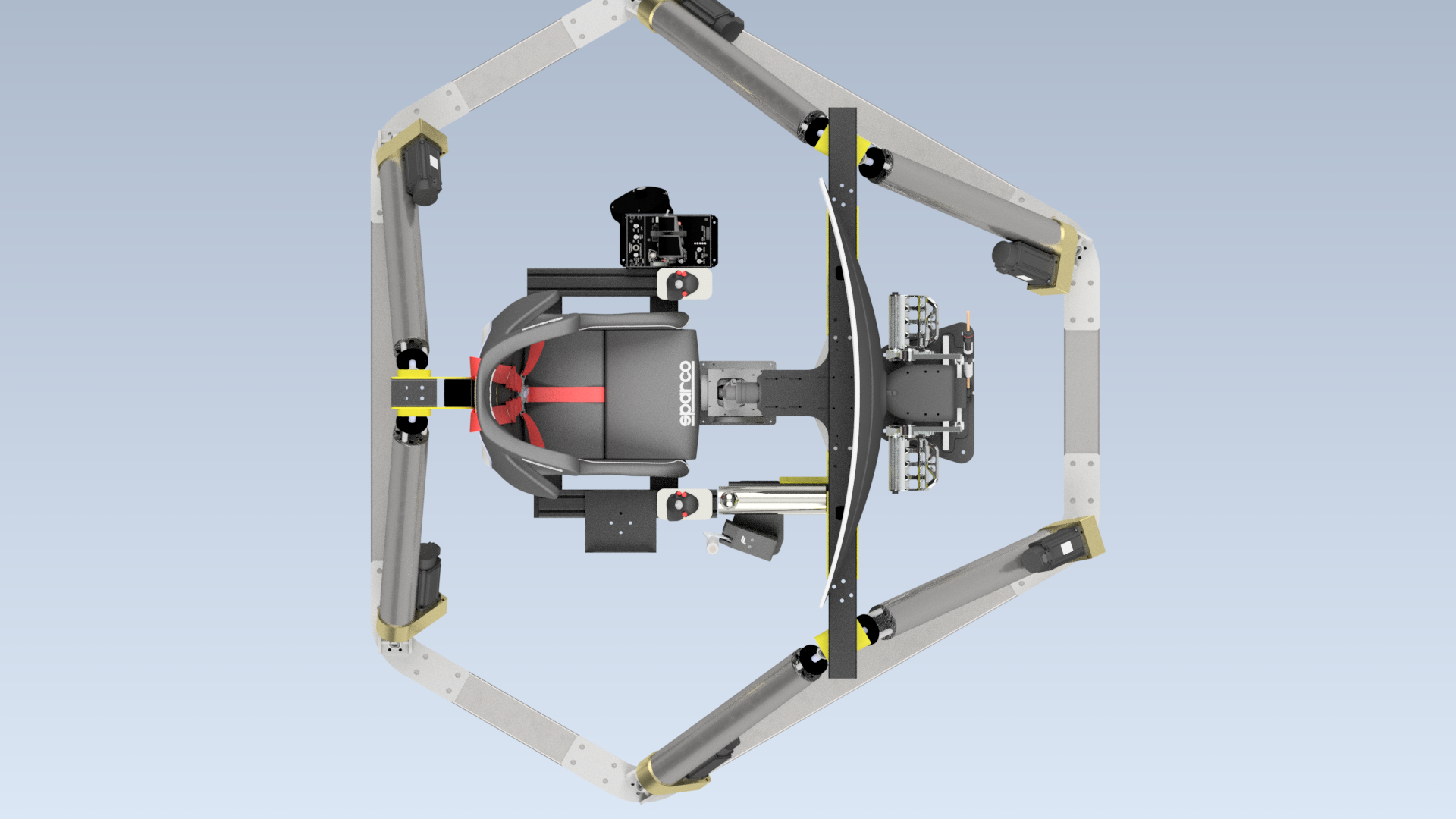

  • Gravideck GT35 3DOF motion simulator
  • Motion Controller : 1Ghz CPU - 24 bits motion resolution
  • Power: 500W (average) - 3 kW (peak)

  • Max actuator speed: 800 mm/s

  • Heave travel: 500 mm (±250 mm)

  • Pitch: ±20°

  • Roll: ±20°

  • Induced Surge during fast pitch transient
  • Induced Sway during fast roll transient
  • Payload: 200 kg

1GHz

CPU

1G

Acceleration

Design Philosophy & Cost‑Efficiency That Benefits You

An elite motion simulator for racing & flight

Our guiding design philosophy was simple: apply rigorous physics and smart engineering to dramatically reduce hardware complexity, without sacrificing immersion. Rather than the typical six-motor (6DOF) setups—which add unnecessary complexity, cost, and maintenance burdens for marginal immersive gains—we engineered the G35 to run on just 3 powerful motors, strategically placed to provide the most realistic experience.

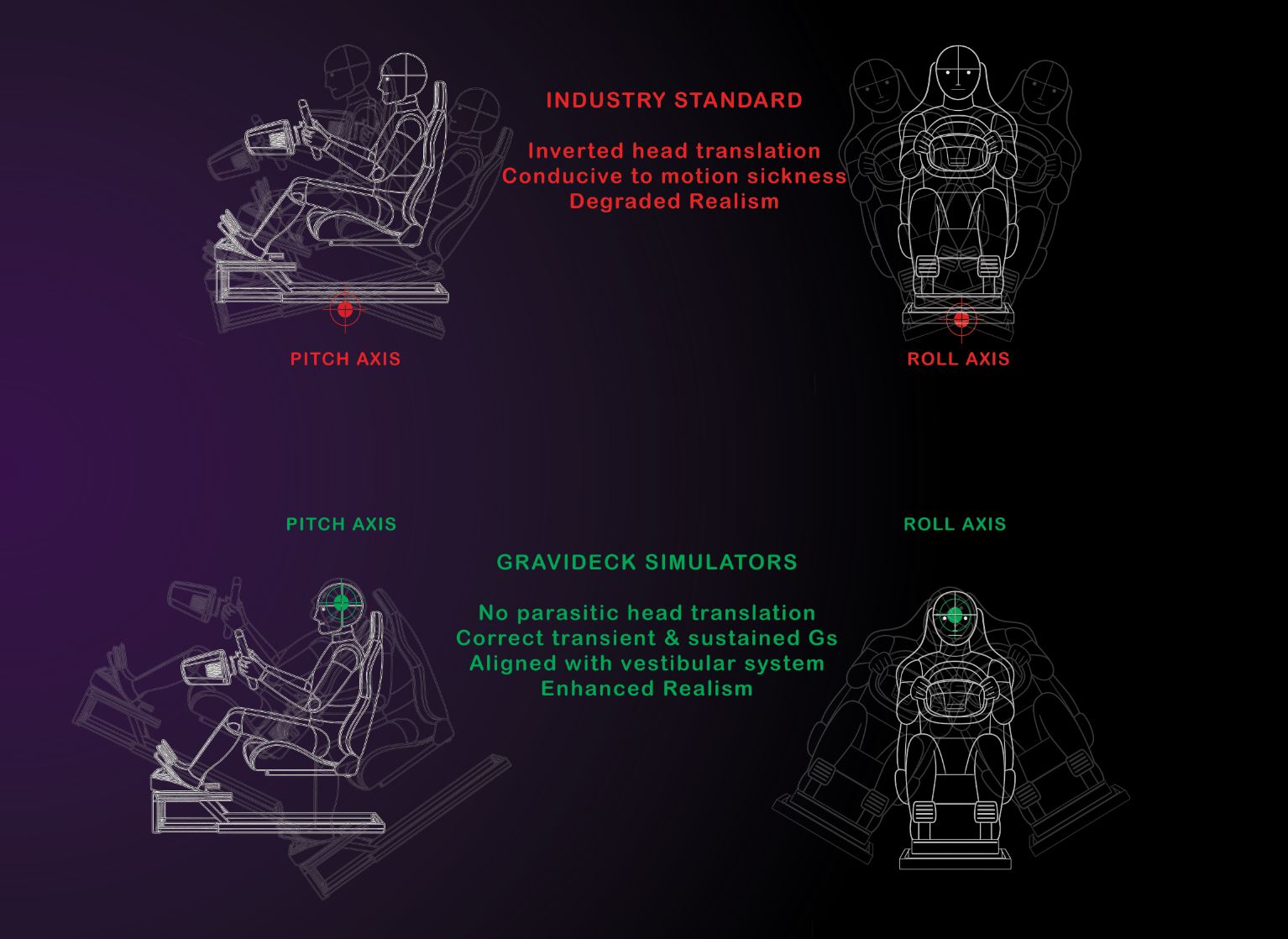

By natively positioning the pitch and roll rotation axes above the user's head, the G35 can deliver a large envelope of motion while eradicating incorrect motion cues, a feat that even most 6DOF systems struggle to achieve.

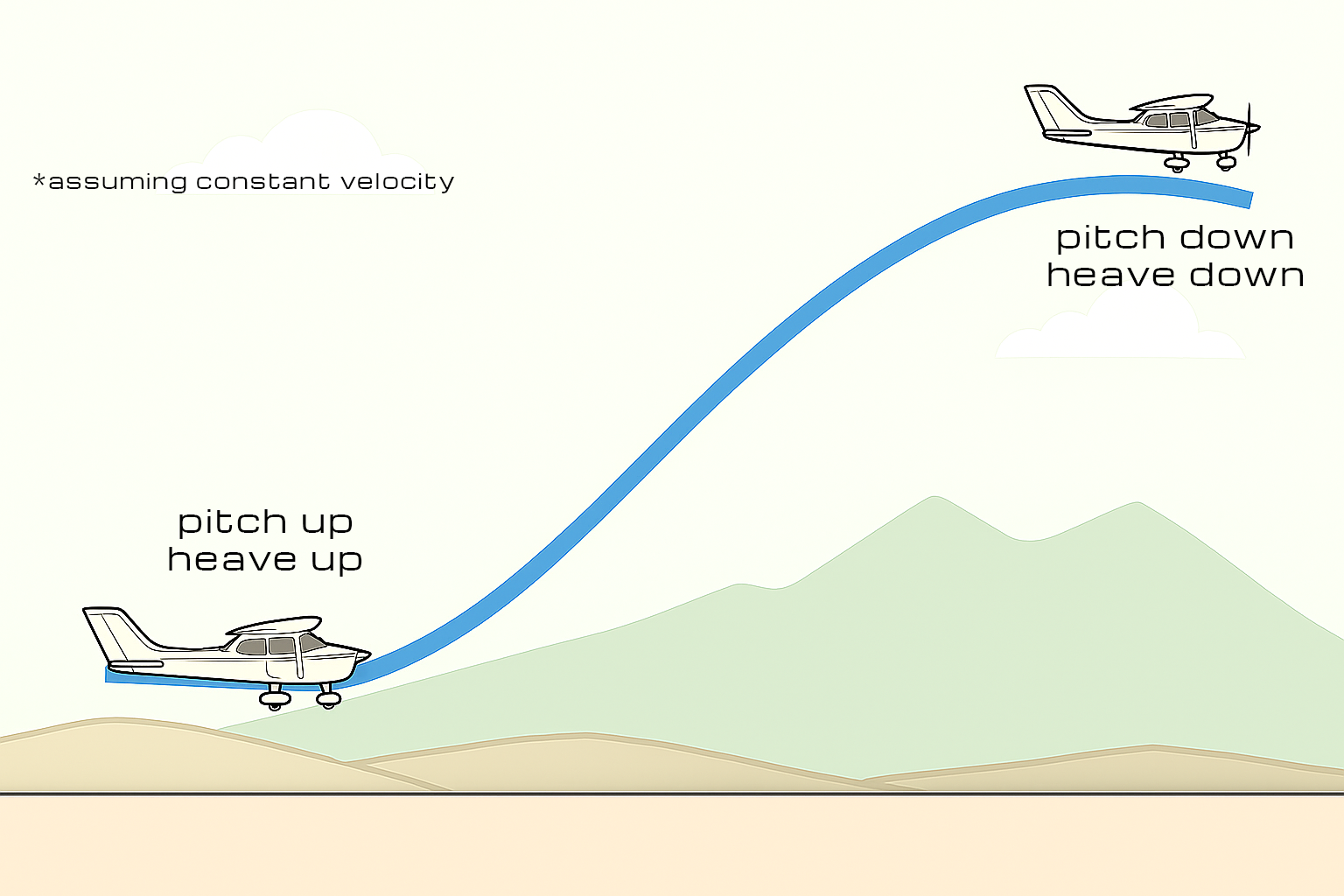

Even better : through clever use of induced motion cues—such as surge during rapid pitch transients and sway during quick roll movements—we unlock a perceived 5 DOF experience from a fundamentally 3‑motor system.



demo-attachment-160-about-bg
Ferarri-Formula-1-Transparent-PNG

Nous concevons et contruisons des systèmes sur mesure
